MindChip Remote Pilot

MindChip provides modular control and autonomy solutions for unmanned and remotely operated vessels. The Artificial Captain product family enables customers to start with reliable remote operation and upgrade seamlessly to full autonomous capability as operational needs grow.

MindChip Remote is entry level product of Artificial Captain product line that enables remote vessel operation with autopilot, mission management, live video, telemetry, and redundant communications. The vessel follows waypoints autonomously, but situational awareness, obstacle avoidance, and collision avoidance remain the responsibility of the remote operator.

Vessel Remote Operation

Full vessel operation through a secure web-based user interface or a rugged tablet control panel. Operators can remotely steer the vessel, monitor status in real time, and assign predefined missions.

Autonomous Route Execution

The vessel autonomously follows waypoints and executes planned routes. Responsibility for monitoring surroundings and avoiding obstacles remains with the operator.

Mission Management

Plan, schedule, and manage missions with an intuitive interface. Customize routes, set precise timings, and scale to meet varying operational needs.

IMO Degree Level 3

The vessel with MindChip Remote is controlled and operated from a remote-control centre, and no personnel are present onboard.

Key Features

Autopilot

With compass
and triple IMU

GNSS Navigation

GPS, Galileo, GLONASS, BeiDou

Local Radio Control

2.4 GHz, up to 500 m LoS

Remote Control

via 4G broadband

360° view

Day and night

Dual SIM

automatic failover

Operator Interface

web and rugged tablet-based

Satellite Communication

Optional feature for complete coverage

Anti-jam GNSS system

Optional feature for
high-interference areas

Over the Horizon Control

The MindChip web-based user interface delivers real-time telemetry, comprehensive vessel diagnostics, and continuous fault monitoring. Designed for operational flexibility, it supports multi-screen setups and immersive 360° live camera streaming.

The platform enables advanced mission management, including patrol operations, precise waypoint navigation, and rapid mission tasking. Operators can also seamlessly control payloads and auxiliary onboard systems from a single, unified interface.

Portable control

In addition, the operator can control the robotic vessel using a tablet- or mobile-based application, which enables remote vessel control via an on-screen joystick, while simultaneously maintaining real-time situational awareness through live camera streams of the vessel’s surroundings. Application is available for both iOS and Android operating systems.

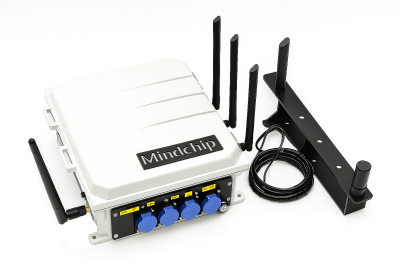

Specification

Dimensions: 30 x 25 x 15 cm
Weight: 10 kg
Rugged housing suitable for marine environments (IP65)
12 V power
Modular extensible architecture
Integration options with CAN bus, NMEA, MAVLink, ROS and MindChip REST / WebSocket APIs
Upgradeable to MindChip Full Autonomy

Downloads

Artificial Captain brochure

3.0 MB
